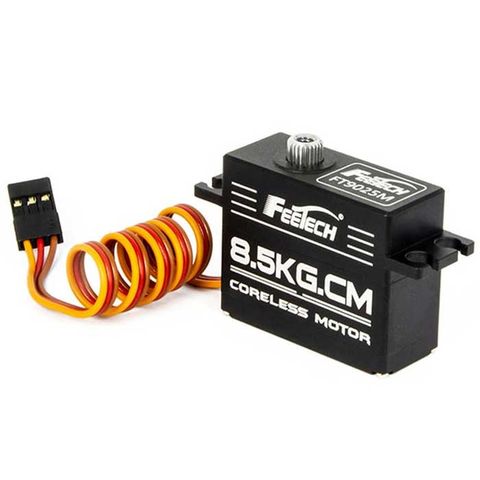

FEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor Servo
FEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor ServoFEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor ServoFEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor ServoFEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor ServoFEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor Servo

FEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor Servo

Item# DF0031
USD $33.99
  • DESCRIPTION
  • REVIEWS
QTY:
FEETECH FT9025M 6V 8.5kg Digital Servo Metal Gear Coreless Motor Servo

Specifications:

Model:

FT9025M

Product Name:

6V 8.5kg.cm Digital 180 Coreless motor servo

Storage Temperature Range -30℃~80℃
Operating Temperature Range: -20℃~60℃

Size:

A:36mm B:15mm C: 29.2mm

Weight:

35.2 1g

Gear type:

Metal Gear

Limit angle:

NO limit

Bearing: Ball bearings
Horn gear spline:

25T/5.9mm

Case: Alumi num
Connector wire: 25CM
Motor:

Coreless Motor

Operating Voltage Range:

4.8-6V

Idle current (atstopped)  6MA@6V

No load speed:

0.133sec/60@6V

Runnig current(at no load) : 200mA@6V

Peak stall torque:

8.5kg.cm@6V

Rated torque:

2.8kg.cm@6V

Stall current: 1.4A@6V
Command si gnal Pulse width modification
Amplifier type Digital comparator
Pulse width range 500~2500 μ sec
Stop position 1500 μ sec
Running degree

180(at 500→2500μsec)

Dead band width ≤4 μ sec
Rotating direction Counterclockwi se (在1500→2000 μ sec)

Drawings:
