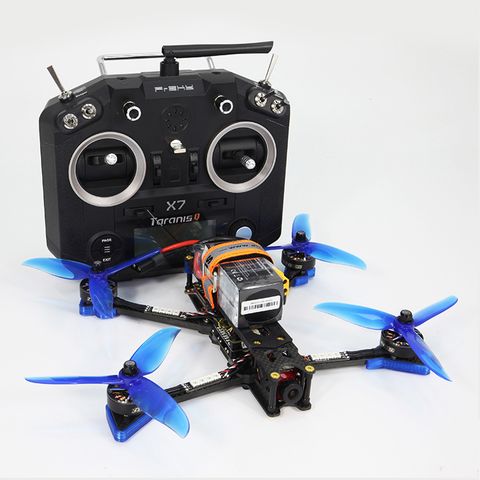

ARRIS Explorer 220 3-4S 5" Freestyle FPV Racing Drone RTF w/ Q X7
ARRIS Explorer 220 3-4S 5" Freestyle FPV Racing Drone RTF w/ Q X7ARRIS Explorer 220 3-4S 5" Freestyle FPV Racing Drone RTF w/ Q X7ARRIS Explorer 220 3-4S 5" Freestyle FPV Racing Drone RTF w/ Q X7

ARRIS Explorer 220 3-4S 5" Freestyle FPV Racing Drone RTF w/ Q X7

Item# CA0303US
USD $319.00
$339.00
Save $20.00 (5.9%)
  • DESCRIPTION
  • REVIEWS
Mode:
Mode2(left hand throttle)
[out of stock]

The arris explorer 220 setting file is here.

ARRIS Explorer 220 3-4S 5" Freestyle FPV Racing Drone RTF is fully assembled and tested, it is ready to fly. 3 radios are optional: Radiolink AT9S , Frsky Q X7 radio. ARRIS Explorer 220 is the latest 220mm size fpv racing drone releasedby ARRIS. The same as our previous products, ARRIS aims to provide high cost effective fpv racing drone BNF/RTF for the FPV lovers. ARRIS Explorer 220 comes with 2206 2450KV brushless motor, F4 with 4IN1 ESC , CADDX ratel fpv camera, VT5804 power adjustable VTX and fpv antenna. Fully assembled and tested before leaving the factory.



Main Features:
1. Ultra-narrow body, greatly reducing the wind resistance in flight
2. The chopstick-shaped arm design allows you to maximize the power of your motor
3. The whole frame adopts 12.9 countersunk head square raw gold screws, which is more durable and beautiful.
4. The weight of the frame is 90G, the BNF is only 363G, the ultra-light weight is more handy in both racing and fancy flight, with an unparalleled feel.
5. The back of the arm is designed for unobstructed shooting. The camera will not capture the presence of the blade.
6. 4 programming LEDs make the aircraft more cool.

Specifications:
Item Brand: ARRIS
Item Model: ARRIS Explorer 220
Wheelbase: 226mm
Arm thickness: 5mm
Frame material: high strength carbon fiber plate
Flight controller: F4
ESC: 4IN1 40A ESC
Camera: CADDX Ratel
Motor: ARRIS X2206 2450KV
Flight speed: 170km/h
Flight time: 3 to 8 minutes
Battery suggested: 4S 1300 to 2000mah

ARRIS Explorer 220 really cost quite a long time on designing and improving on many small details. Chipstick-shaped arm adopts 5mm thickness carbon plate, it not only allows you to maximize the power of the drone, but also remains the strength of it. Ultra-narrow body, greatly reducing the wind resistance in flight.The whole arm adopts 12.9 countersunk gold screw, more durable and beautiful.

ARRIS Explorer220 comes with powerful X2206 2450KV Brushless motor. The main features of the motor is as below:
1. Adopts the brand new M5 steel shaft, improving the structure strength.
2. Anti-slip pro design.
3. Adopts original Japan NSK bearing, improving the performance of the motor.
4. Adopts N52 tile-shaped magnets.
5. Adpops open structure design, optimizing the heat dissipation.
6. The motor passed more than 20 kinds of tests before leaving the factory, ensure the quality of the motor

DALPROP cyclones T5045C series propeller is newly released high end dynamic balanced prop for fpv racing drones.
The propeller is made of imported PC,the strength is high, and the root is thickened,which make the propeller is not easily broken. The smooth surface design on the prop decreased the windage resistance,increasing the efficiency of the propeller.

Diatone Mamba Betaflight F405 flight controller with 40A ESC tower is great for fpv racing drones.

arris explorer 220

Caddx Ratel 1/1.8" Starlight HDR 1200TVL FPV racing drone camera is specially designed for fpv racing quads. With the 8ms ultra low latency and excellent performance in dark night, it will bring you on an unprecedented FPV journey.

arris explorer 220 fpv racing drones

ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter.It has stable output power, long transmission range (0.5KM+@25mW; 1KM@200mW; 2KM+@600mW with stock antenna), 6 power switchable,Output power and frequency setting can be done in OSD interface through remote controller and it weighs only 6g, perfect for fpv racing quads.

arris explorer220 fpv racing drones

Programmable LED on the arm, the color of the led is adjustable in the betaflight.

3D print GoPro mount is avaialble for the Arris Explorer 220, reserved the holes for it. To purchase the GOPRO mount, please check here.

arris explorer 220 fpv racing drones

arris explorer 220

For the RTF,we have three radios for you to choose:Radiolink AT9S, Frsky Q X7 and Jumper T16 Pro V2.

Radiolink AT9S is one radio with high cost effective performance.And the quality is great, we hardly meet any qualiy problem with it.

Radiolink AT9S 10 Channel 2.4GHz Radio
Specification:
Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0 MHz and 250Kbps
Spread spectrum: DSSS&FHSS
Adjacent channel rejection: >38dbm
Transmitter power: less than 100mW (20dbm )
Operating current: 90mA@12V
Operating voltage: 7.4~18.0V
Control distance: More than 900 meters ground, 1500 meters air (the actual controldistance depends on the flying environment)
Channel: 10 channels,5-10 channels are customized
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator model: under the simulator model the transmitter action turn off, change to power saving model
Screen: 2.8 inches 16 colorful screen, 240*320 pixels
Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS
Size: AT9S- 183 x 100 x 193mm, R9DS- 41 x 23 x 14mm
Weight: 0.88kg

arris explorer 220 rtf

Frsky Q X7 is one classic radio for rc models, quality is very good too. Sine it is open source radio, so it is compatible with most of the drones bnf in the market. If you want to fly it in future models, choose this one will be better.

Taranis Q X7 ACCESS features 24 channels with a faster baud rate and lower latency thanks to its high-speed module digital interface. As with the rest of the ACCESS transmitters, it provides a secure and reliable link, along with wireless firmware updating making it fully compatible with our newest line of OTA receivers. The battery compartment now uses 2 18650 Li-Ion batteries and can be balance charged via the Mini USB interface.

Main Features:
Ergonomic and compact design
Open source operating system
Installed with ACCESS protocol
High-speed module digital interface
Supports spectrum analyzer function
Supports wired training function
Haptic vibration alerts and voice speech outputs
Easily accessible battery compartment
(*Batteries not included, adaptive with replaceable 18650 Li-ion batteries)

Specifications:
Dimension: 202.2mm*189.4mm*96mm
Weight: 613g (without battery)
Number of channels: 16 (ACCST D16) / 24 (ACCESS) channels
Internal RF module: ISRM-N
Operating Voltage Range: 6.5V~8.4V
Operating Current: 160mA@7.2V typ
Operating Temperature: -10℃~60℃ (14℉~140℉)
Backlight LCD resolution: 128*64
Smart Port, Micro SD card slot, Mini USB Port and DSC Port

arris explorer 220 rtf

Jumper T16 Pro V2 is the latest open source radio from Jumper. The same as the Q X7, it is compatible with the most of the racing drones BNF in the market.

Main Features:
-STM32F429BIT6 MCU
-Industrial grade 4.3 inch 480*272 outdoor readable color screen
-Compatible with JumperTX (An independent fork of OpenTX)
-Wheel menu button
-T16 Pro Hall Sensor Gimbal
-Multi-protocol transmitter module with TBS CRSF support
-Removable battery
-Supports Telemetry
-Memory 16M (can be expanded by Micro SD card)
-Voice function
-Vibration reminder function
-Standard JR module slot
-6-Flight Mode Buttons (for APM and Pixhawk flight controllers)
-Two-color LED status display

Specifications:
Item Brand: Jumper
Item Model: Jumper T16 Pro
Channel: 16 CH
Voltage: DC7-8.4V
Battery: 2 x 18650 (Tray supplied) or 2S Lipo (Battery not included)
Current: 350mah (No CRSF)
Micro SD Slot: Card Included
Size: 180 x 190 x 58mm
Weight: 798g (with 2x18650 batteries installed)

arris explorer 220 rtf

Packange Included:
ARRIS Explorer220 FPV Racing Drone Frame Kit x 1
ARRIS X2206 2450KV brushless motor x 4
Diatone Mamba F4 with 4IN1 Esc x 1
Caddx Ratel 1/1.8" FPV camera x 1
Dalprop T5045C High Effiency Propeller x 4 (2CW+2CCW)
ARRIS VT5804 48CH VTX x 1
FPV Antenna x 1
Battery straps x 1
Frsky Q X7 radio with receiver x 1
ARRIS 4S 1500 mah Lipo Battery x 1

Note: Battery for the Radio and the lipo battery charger is not included. Please purchase them seperatly.
